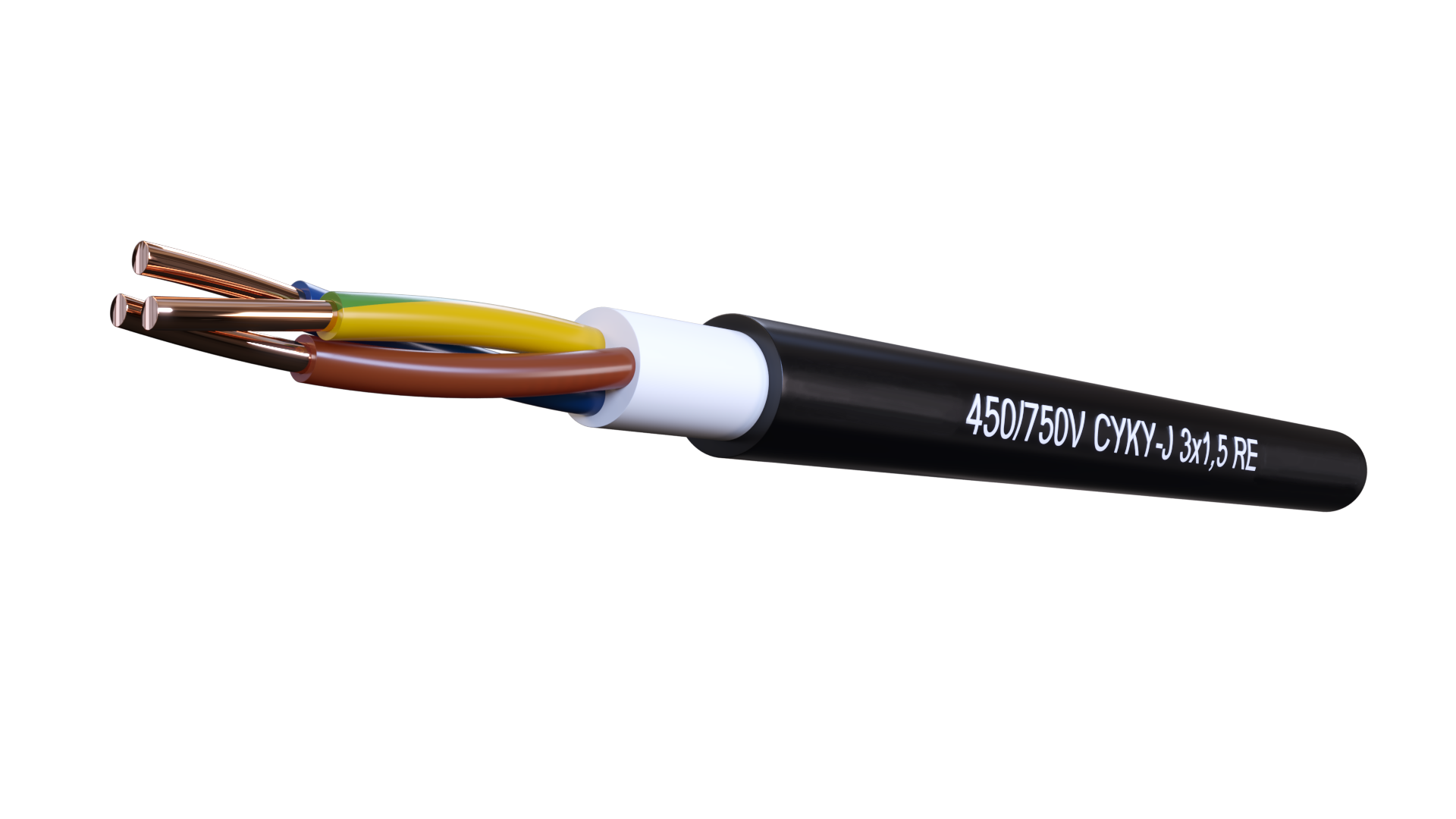

CYKY 450/750V - PVC Insulated Current Cable
Description
Application:
For installation in, on or under plaster, in dry, damp or wet rooms as well as in walls and concrete. Also suitable for installation outdoors if protected against direct sun irradiation
Construction:
Conductor - Copper : solid (RE) or stranded (RM)
Insulation - Polyvinylchloride (PVC)
Filling - Core covering or taping
Outher sheath - Polyvinylchloride (PVC), Black
Standards:
CSN 34 7411;
DIN EIN 60228 class 1 and 2 - Construction
License:
This cable is EZU certified
Core Identification:
Accordance to HD 308 S2
JZ: One core green/yellow, other cores are black with figures
OZ: every core is black with figures
Specifications
Electrical Performance:
Nominal Voltage: 450/750 Volt
Test Voltage: [V]AC 2500
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 6
Multi core x diameter 12
Temperature range:
In motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Max. temp. short circuit °C 160°C
Fire classification CPR class:
EN 50575 – Eca
