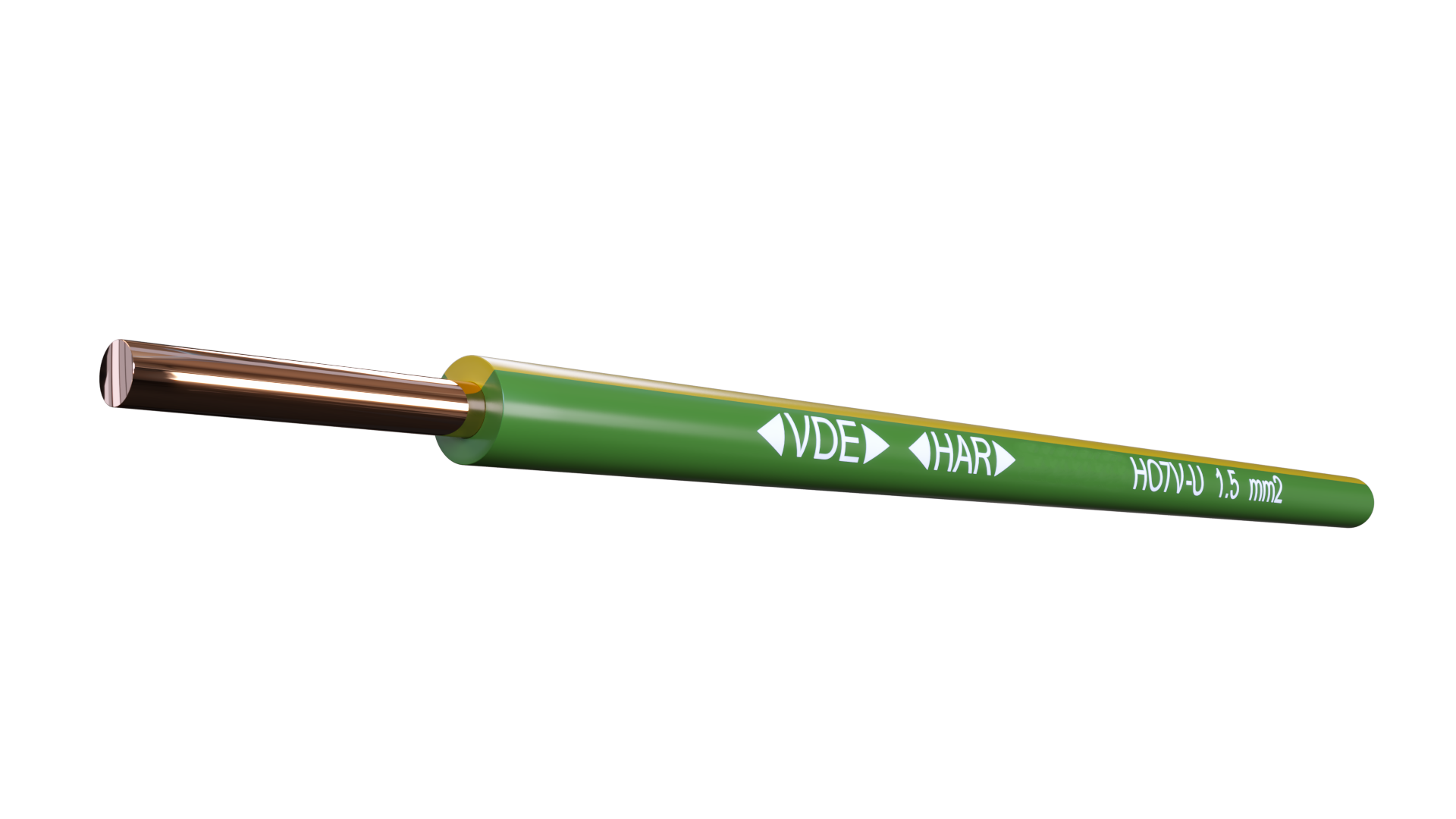

H05V-U 300/500V & H07V-U 450/750V - PVC Insulated Single Core Wire
Description
Application:
H05V-U: For protected fixed installations inside appliances and in or on lighting fittings. Further for installations in pipes on and under plaster, however, only for signal circuit and control circuit.
H07V-U: For indoor fixed installations in dry locations, in switchboards and distributors, installed in surface mounted or embedded conduits, or on suitably objects.
Construction:
Conductor - Copper: Solid (RE)
Insulation - Polyvinylchloride (PVC)
Standards:
EN 50525-2-31;
IEC 60228
License:
This cable is VDE HAR certified
Specifications
Electrical Performance:
Nominal voltage: H05V-U Uo/U [V] 300/500 Volt
Nominal voltage: H07V-U Uo/U [V] 450/750 Volt
Test voltage: H05V-U [V]AC 2000
Test voltage: H07V-U [V]AC 2500
Short circuit time: max. [sec] 5
Bending radius: min. x diameter 4
Temperature range:
In motion °C -30°C till +70°C
Max. temp. short circuit °C 160°C
Fire classification CPR class:
EN 50575 – Eca
