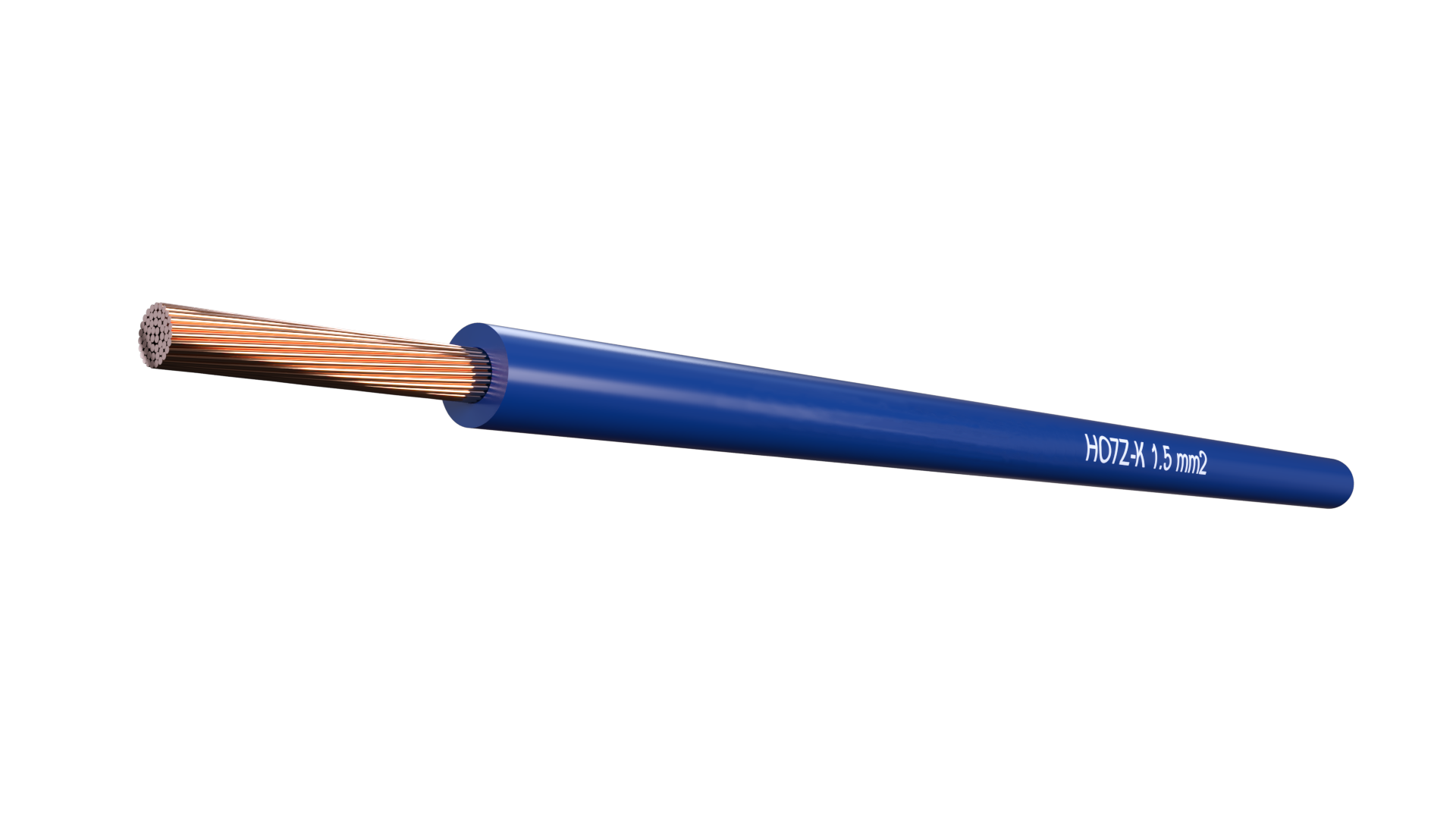

H05Z-K 300/500V & H07Z-K 450/750V - PVC Insulated Single Core Wire
Description
Application:
H05Z-K: For fixed installations in devices and in or on lights, as well as for the house installation, especially for uses by their one low creation is demanded of smoke and corrosive gases in the fire case, however not outside.
H07Z-K: For the installation in electrical conduit on or under plaster or in similar closed systems especially for applications where there is a requirement for low smoke and corrosive gas creation in the event of fire, however not outside.
Construction:
Conductor - Fine-stranded bare copper
Insulation - Halogen-Free, Cross linked Polyethylene
Standards:
EN 50525-3-41,
IEC 60228 class 5CSN 34 7411;
Specifications
Electrical Performance:
Nominal voltage: H05Z-K Uo/U[V] 300/500 Volt
Nominal voltage: H07Z-K Uo/U [V] 450/750 Volt
Test voltage: H05Z-K [V]AC 2000
Test voltage: H07Z-K [V]AC 2500
Short circuit time: max. [sec] 5
Bending radius: min. x diameter 6
Temperature range:
In motion °C -40°C till +90°C
Max. temp. short circuit °C 250°C
Fire classification CPR class:
EN 50575 – Dca
