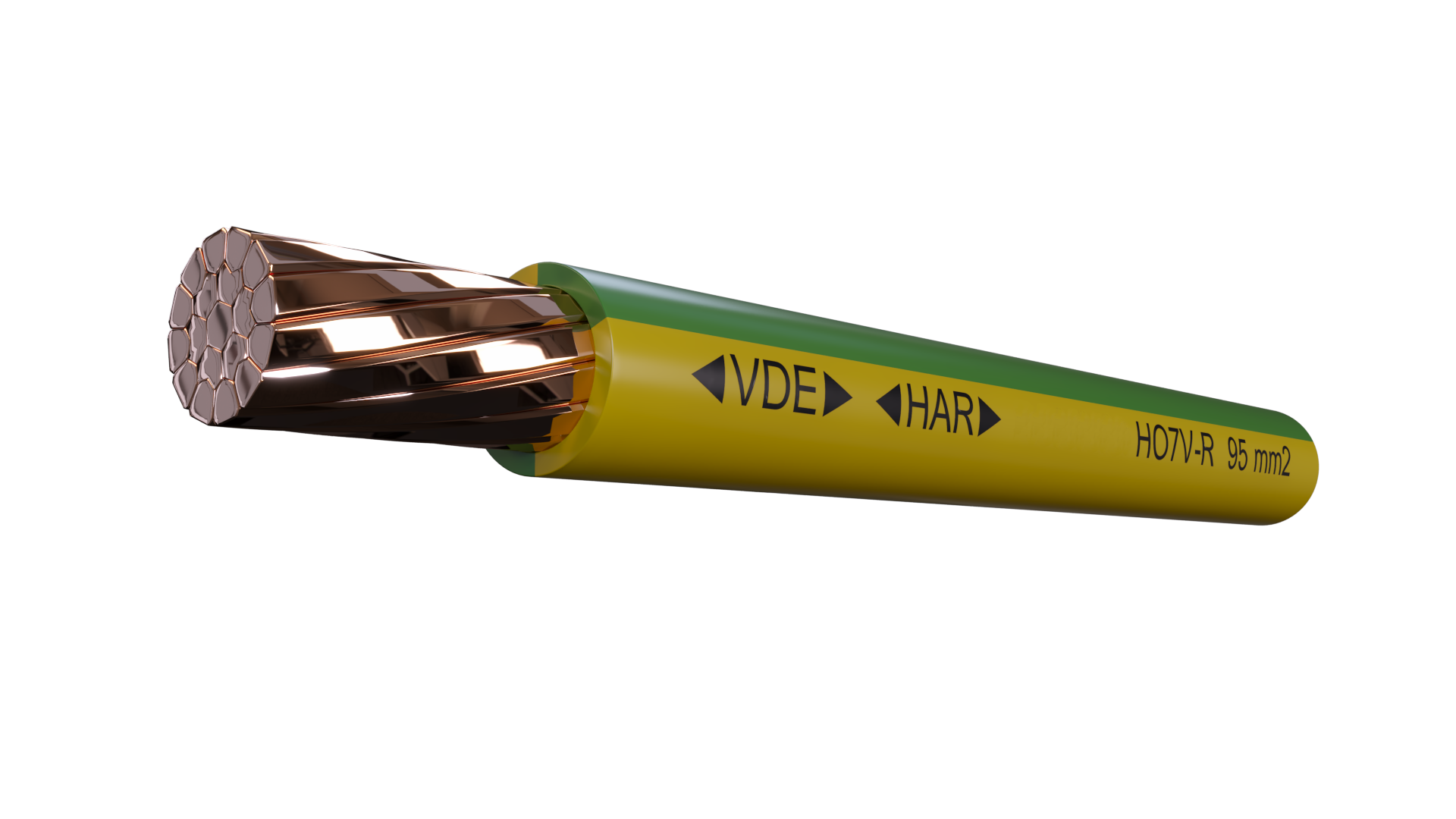

H07V-R 450/750V - PVC Insulated Single Core Wire
Description
Application:
For indoor fixed installations in dry locations, in switchboards and distributors, installed in surface mounted or embedded conduits, or on suitably objects.
Construction:
Conductor - Stranded bare copper, compacted
Insulation - Polyvinylchloride (PVC)
Standards:
EN 50525-2-31
IEC 60228 class 2
License:
This cable is VDE HAR certified
Specifications
Electrical Performance:
Nominal Voltage: 450/750 Volt
Test voltage: [V]AC 2500
Short circuit time: max. [sec] 5
Bending radius: min. x diameter 4
Temperature range:
-30°C till +70°C
Max. short circuit temp.: 160°C
Fire classification CPR class:
EN 50575 – Eca
