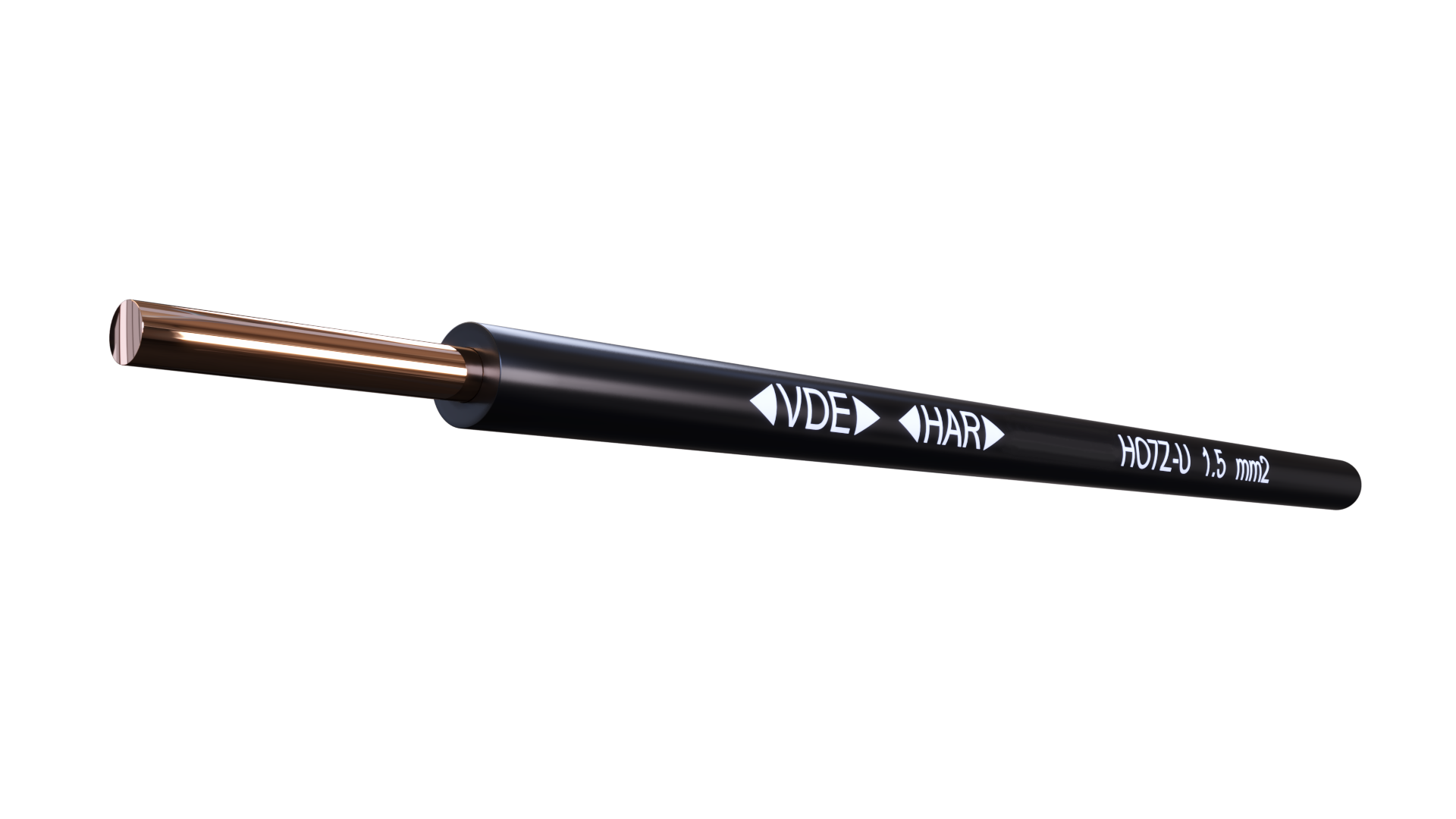

H07Z1-U 450/750V - Halogen-Free Insulated Single Core Wire
Description
Application:
For the internal wiring of switching systems, equipment and lights as well as for domestic installations, however, not for outdoor use
Construction:
Conductor - Copper: Solid (RE)
Insulation - Halogen-free Flame Retardant (HFFR)
Standards:
EN 50525-3-31,
IEC 60228
Specifications
Electrical Performance:
Nominal Voltage: 450/750 Volt
Number of cores: 1
Short circuit time: max. [sec] 5
Cross section: From 1.5 mm2 up to 16 mm2
Temperature range:
in motion -40°C till +70°C
Max. temp. short circuit °C 160°C
Fire classification CPR class:
EN 50575 -Dca
