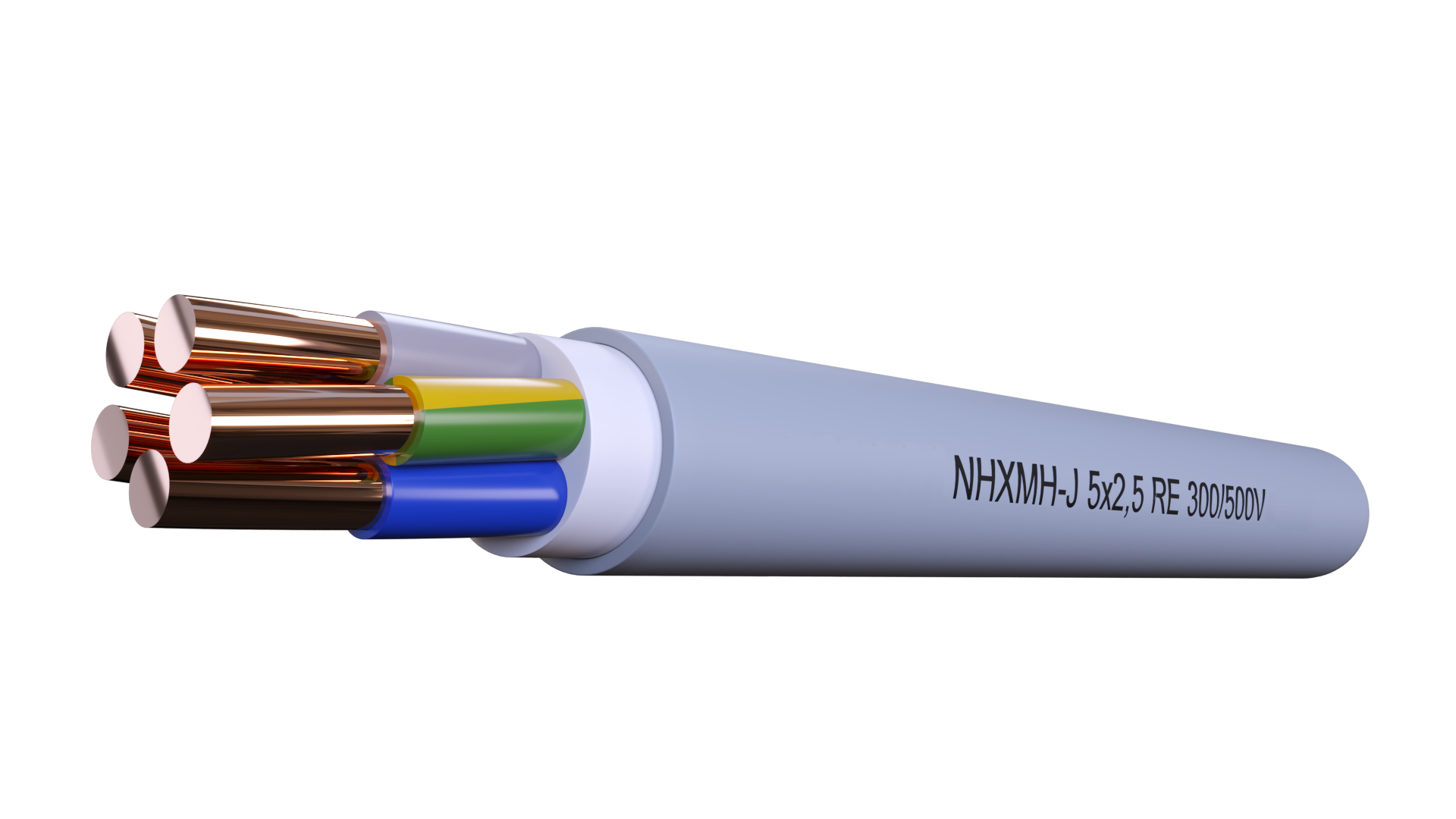

NHXMH - Halogen-Free Sheathed Wire with Improved Fire Behaviour
Description
Application:
Halogen-free cable for installations, with improved fire behavior, laying on, in and under plaster, in masonry, reinforced concrete, dry, humid and wet locations.
Construction:
Conductor - Copper : solid (RE) or stranded (RM)
Insulation - Cross linked Polyethylene
Filling - Core covering of a halogen-free filling compound
Outher sheath - Halogen Free Flame Retardant (HFFR)
Standards:
DIN VDE 0250-214;
IEC 60228
License:
This cable is VDE certified
Core Identification:
Accordance to HD 308 S2
JZ: One core green/yellow, other cores are black with figures
OZ: every core is black with figures
Specifications
Electrical Performance:
Nominal Voltage: 300/ 500 Volt
Test Voltage: [V]AC 2000
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 4
Temperature range:
in motion °C +5°C till +70°C
Fixed °C -40°C till +70°C
Max. temp. short circuit °C 160°C
Fire classification CPR class:
EN 50575 - Dca
