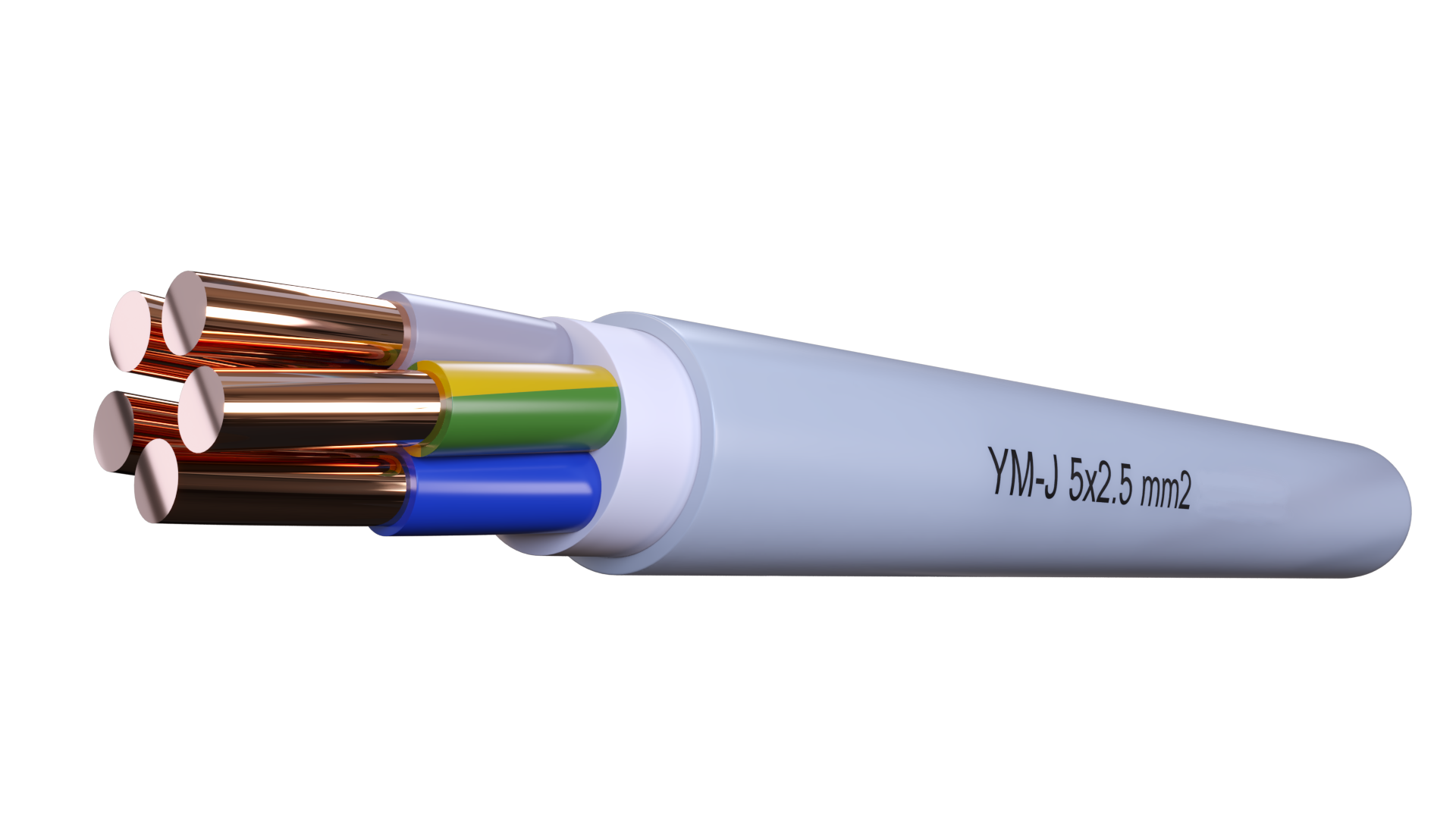

YM - PVC Sheathed Wire
Description
Application:
Only for fixed installations in dry, humid and wet locations. Not suitable for laying directly open-air or in concrete.
Construction:
Conductor - Copper : solid (RE) or stranded (RM)
Insulation - Polyvinylchloride (PVC)
Filling - EPDM
Outher sheath - Polyvinylchloride (PVC), grey or special colors
Standards:
ÖVE / ÖNORM E 8242;
IEC 60228
Core Identification:
Accordance to HD 308 S2
J: One core green/yellow, other cores are colored
O: Every core is coloredOne core green/yellow, other cores are colored
JZ: One core green/yellow, other cores are black with figures
OZ: every core is black with figures
Colored cores for 7 cores : core colours: green/yellow, violet, pink, orange, brown, black, blue
Specifications
Electrical Performance:
Nominal Voltage: 300/ 500 Volt
Test Voltage: [V]AC 2000
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 4
Temperature range:
in motion °C +5°C till +70°C
Fixed °C -40°C till +70°C
Max. temp. short circuit °C 160°C
Fire classification CPR class:
EN 50575 - Dca
