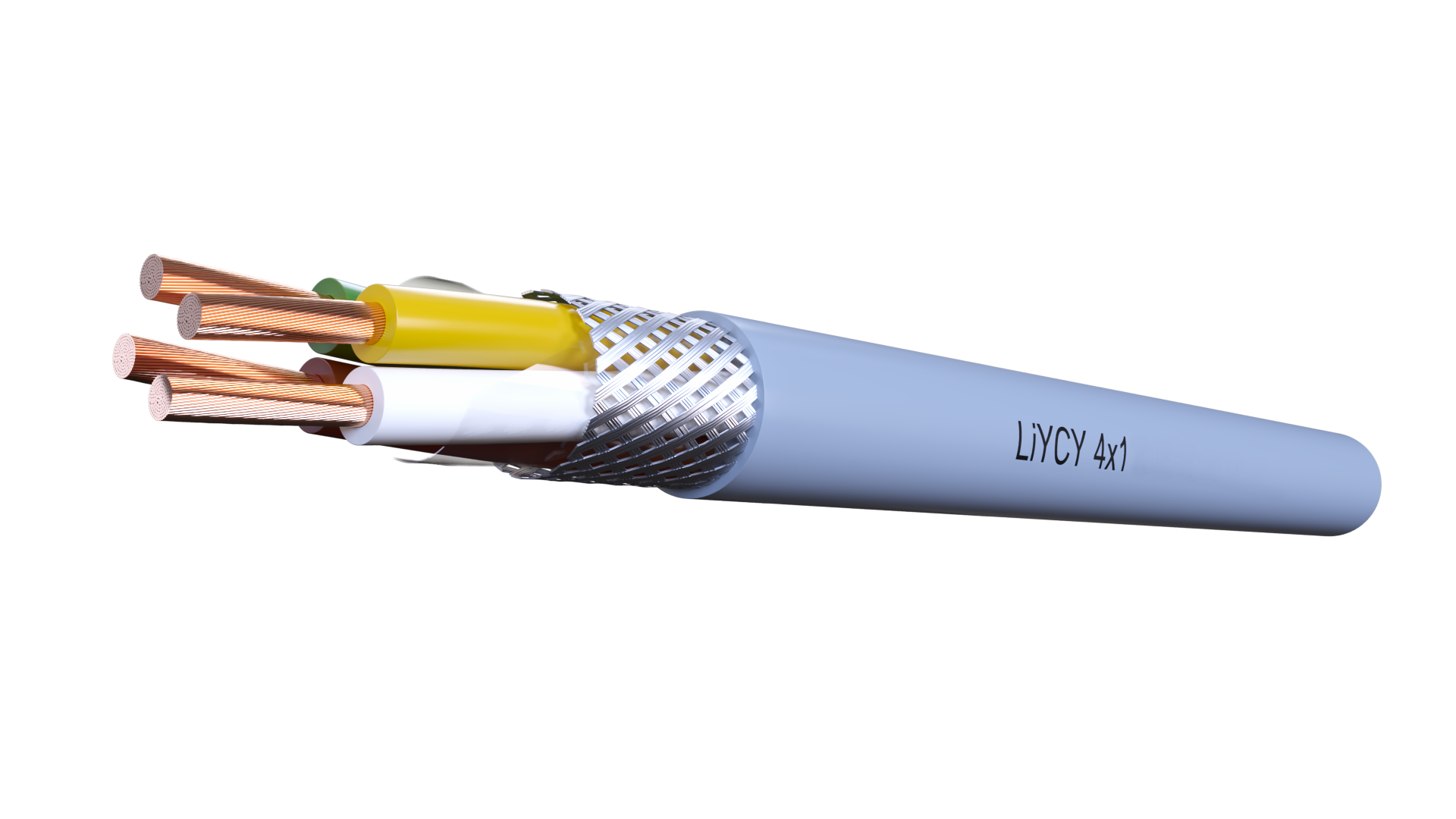

LiYCY - Electronic Control Cable with Tinner Copper
Description
Application:
To be installed in dry and humid rooms and used as a termination and connection cable in the control, measuring and signal technology.
Construction:
Conductor - Fine-stranded bare copper
Insulation - Polyvinylchloride (PVC)
Layer of plastic foil
Braid of tinned copper wires
Outer sheath - Polyvinylchloride (PVC)
Standards:
Adapted to DIN VDE 0812
DIN EN 60228 class 5
Core identification:
DIN 47100 or factory standard
Specifications
Electrical Performance:
Nominal Voltage: Peak [V] 500Volt
Test Voltage: [V]AC 1200Volt
Bending radius in motion x diameter 10
Insulation resistance min [MOhm/km] 100
Temperature range:
In motion °C -5°C till +50°C
Fixed °C -20°C till +70°C
Max. Short-Circuit Temperature: +160°C
Fire classification CPR class:
EN 50575 - Eca
