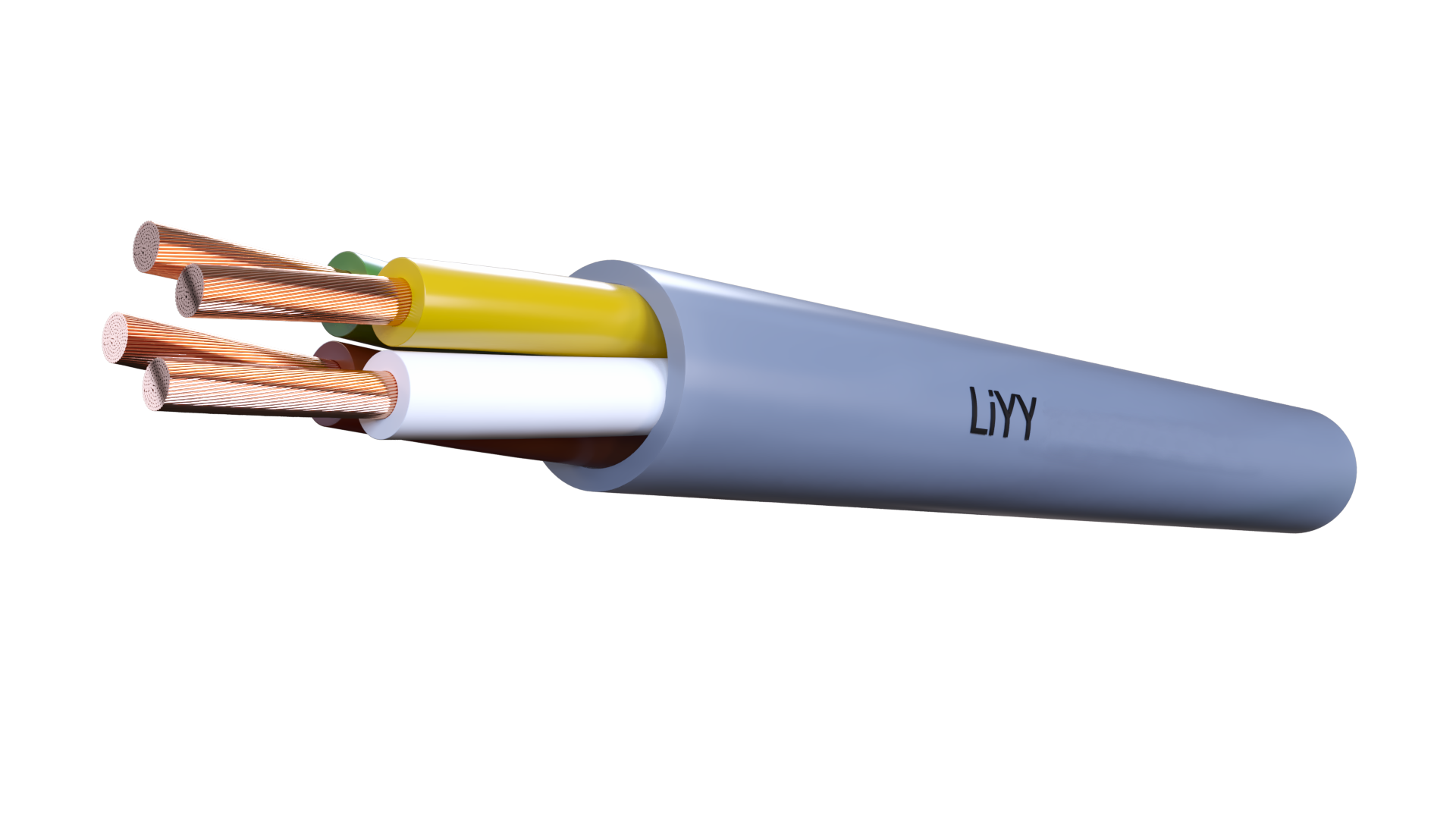

LiYY - Electronic Control Cable
Description
Application:
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.
Construction:
Conductor - Fine-stranded bare copper
Insulation - Polyvinylchloride (PVC)
Filling - Polyvinylchloride (PVC), gray
Standards:
DIN VDE 0812,
IEC 60228 class 5
Core identification:
DIN 47100 or factory standard
Specifications
Electrical Performance:
Nominal Voltage: Peak [V] 500Volt
Test Voltage [V]AC 1200Volt
Bending radius in motion x diameter 10
Insulation resistance min [MOhm/km] 100
Temperature range:
In motion °C -5°C till +50°C
Fixed °C -40°C till +80°C
Max. Short-Circuit Temp.: +160°C
Fire classification CPR class:
EN 50575 - Eca
