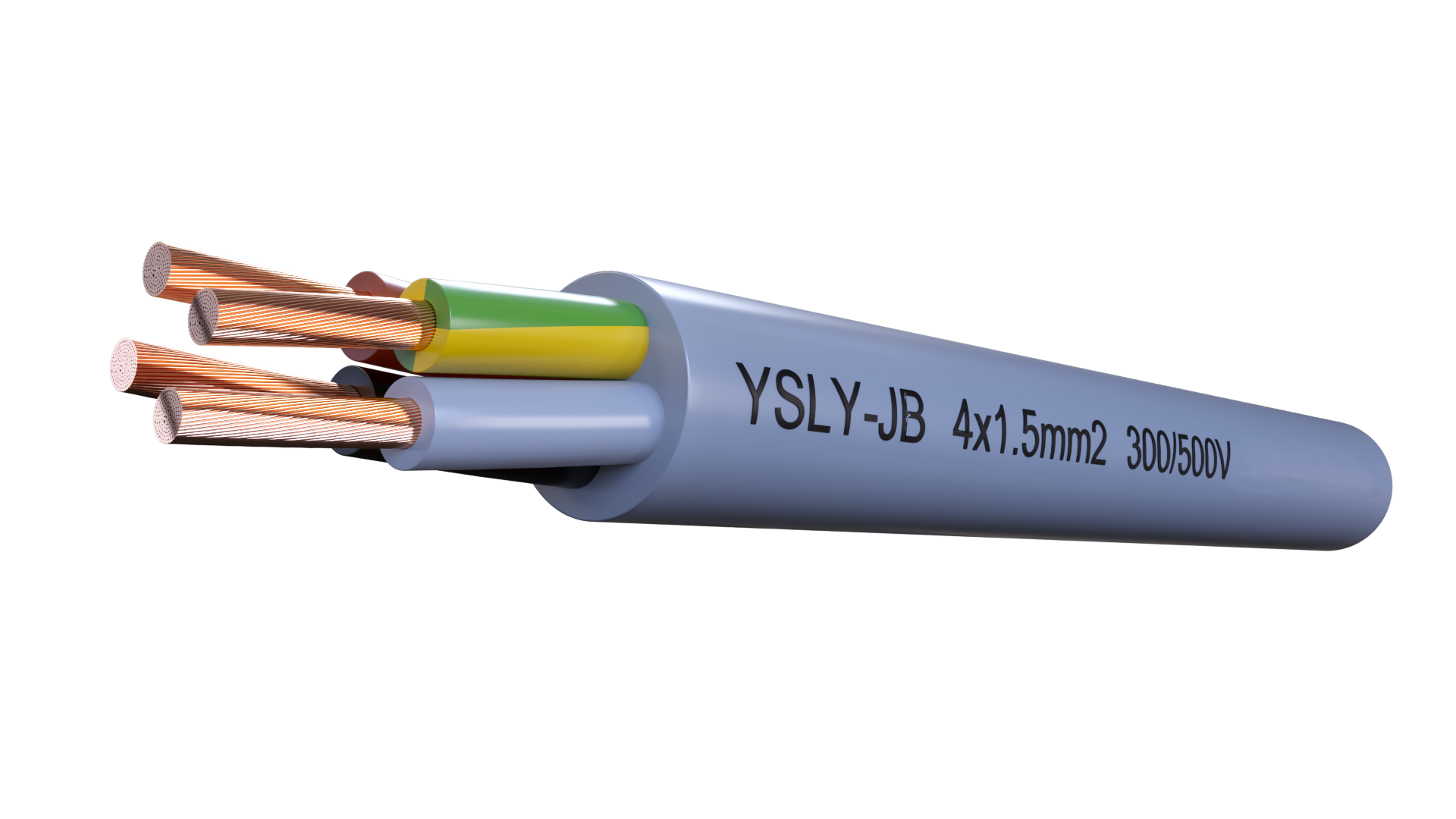

YSLY 300/500V - PVC Control Cable
Description
Application:
In dry and damp locations for low and medium-level mechanical stress, but not in the open-air. To be used as a termination and connection cable in the control, measuring and signal technology. Suitable as a signal and impulse cable for control and inspection of industrial plants, production lines and machinery.
Construction:
Conductor - Copper, fine-stranded
Insulation - Polyvinylchloride (PVC)
Outher sheath - Polyvinylchloride (PVC), Grey
Standards:
DIN VDE 0281,
IEC 60228 class 5
Core identification:
JZ: One core green/yellow, other cores are black with figures
OZ: Every core is black with figures
JB: Colours accordance with HD 308 standard with green yellow
OB: Colours accordance with HD 308 standard without green yellow
Specifications
Electrical Performance:
Nominal Voltage: 300 / 500 Volt
Test Voltage [V]AC 2000
Short circuit time max. [sec] 5
Bending radius one time/fixed x diameter 6
in motion x diameter 15
Temperature range:
in motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Max. short-circuit temp.: +160°C
Fire classification CPR class:
EN 50575 - Eca
