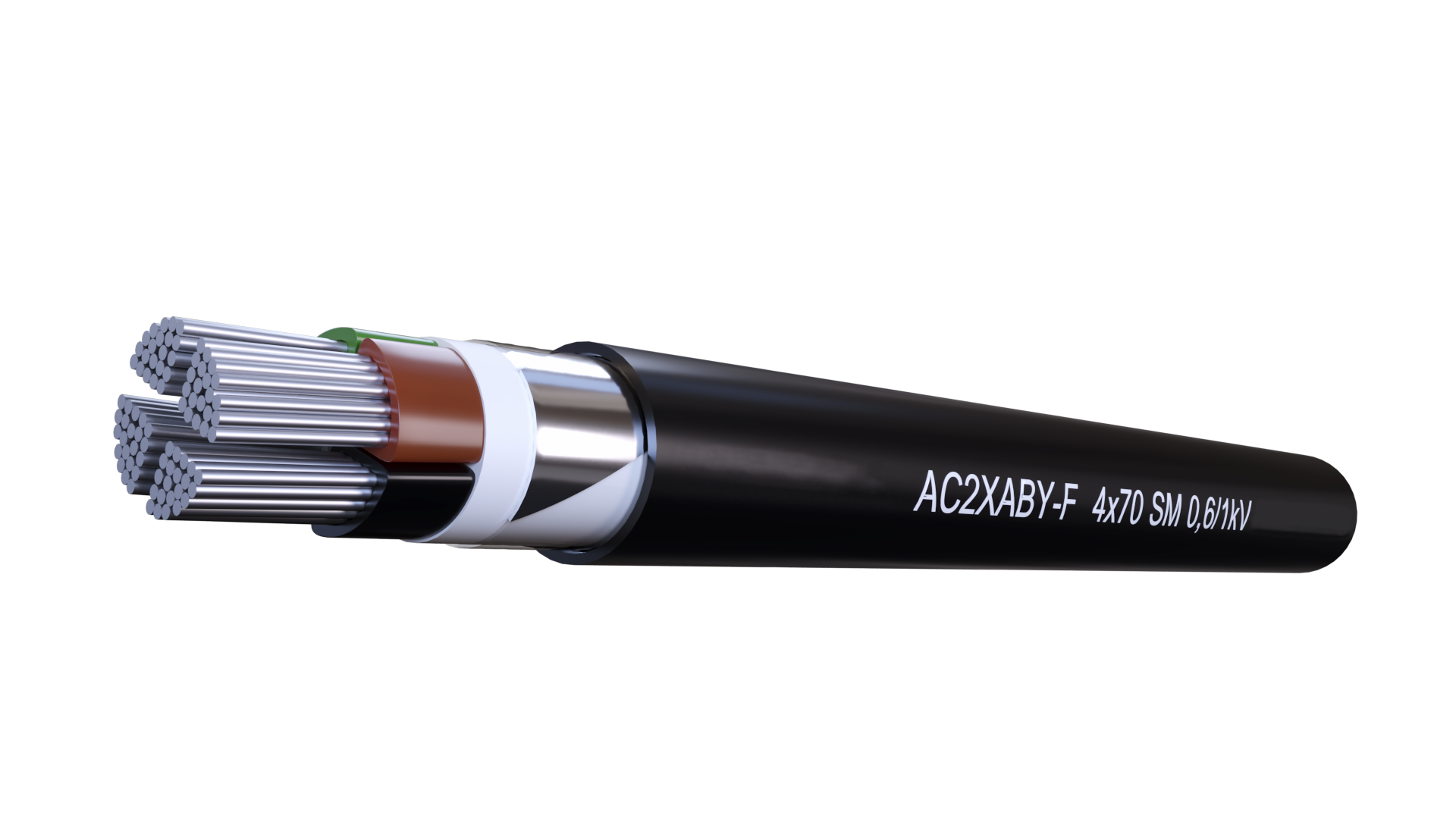

AC2XABY-F 0,6/1kV - Crosslinked polyethylene insulated and PVC sheathed power cable, steeltape armored
Description
Application:
Power supply to power stations. The cables must be protected against: corrosive chemicals and chemical solvents. UV resistant cables
Construction:
Conductor - Aluminum : solid (RE) / Stranded (RM/SM)
Insulation - Cross linked polyethylene
Filler
Inner sheath - Polyvinylchloride (PVC)
Blank or zinc-plated cold-rolled
Polyvinylchloride (PVC) Black, UV-resistant
Standards:
SP 66/2023
Specifications
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Test Voltage: [V]AC 4000
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 12
Temperature range:
with installation and handling -5°C
Storage -30°C
Max. perm. storage temp.: +70 °C
Max. Short-Circuit temp.+250 °C
Fire classification CPR class:
EN 50575 - Eca
