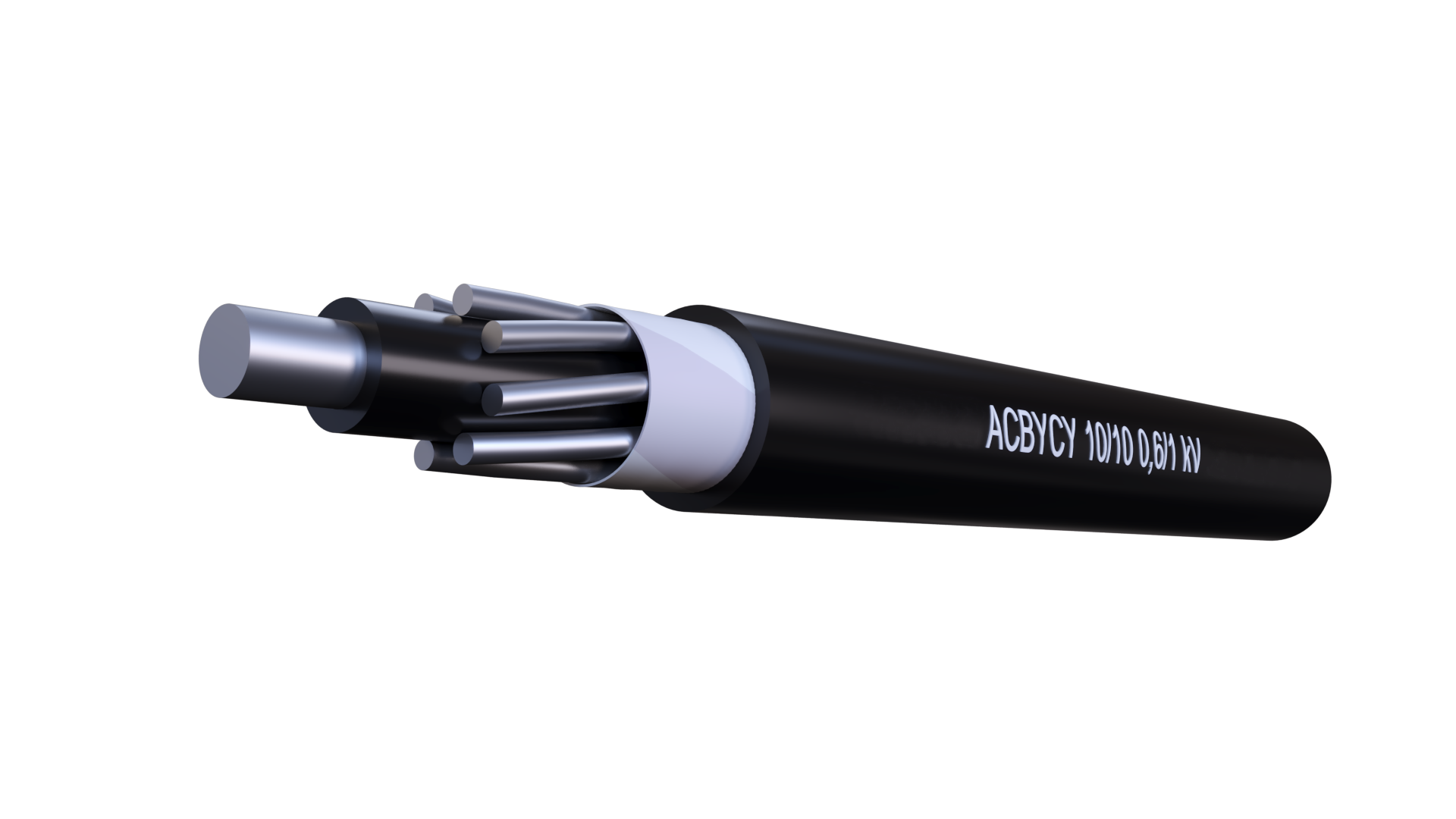

ACBYCY 0.6/1kV - PVC insulated cable with aluminum concentric conductor and PVC sheath
Description
Application:
Monophase connections for Uo/U voltages of 0,6/1kV.
Construction:
Conductor - Aluminum : solid (RE) /stranded (RM)
Insulation - Polyvinylchloride (PVC)
Screening - Concentric conductor of aluminum wires
Inner sheath - Polyvinylchloride (PVC)
Outher sheath - Polyvinylchloride (PVC) Black, UV-resistant
Standards:
SP 76/ 2013
Specifications
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Bending radius: Single circle x diameter 10
Multi core x diameter 12
Short circuit time: 5s
Temperature range:
in motion °C -5°C till +70°C
Fixed °C -40°C till +70°C
Max. short-circuit temp. +160°C
Fire classification CPR class:
EN 50575
