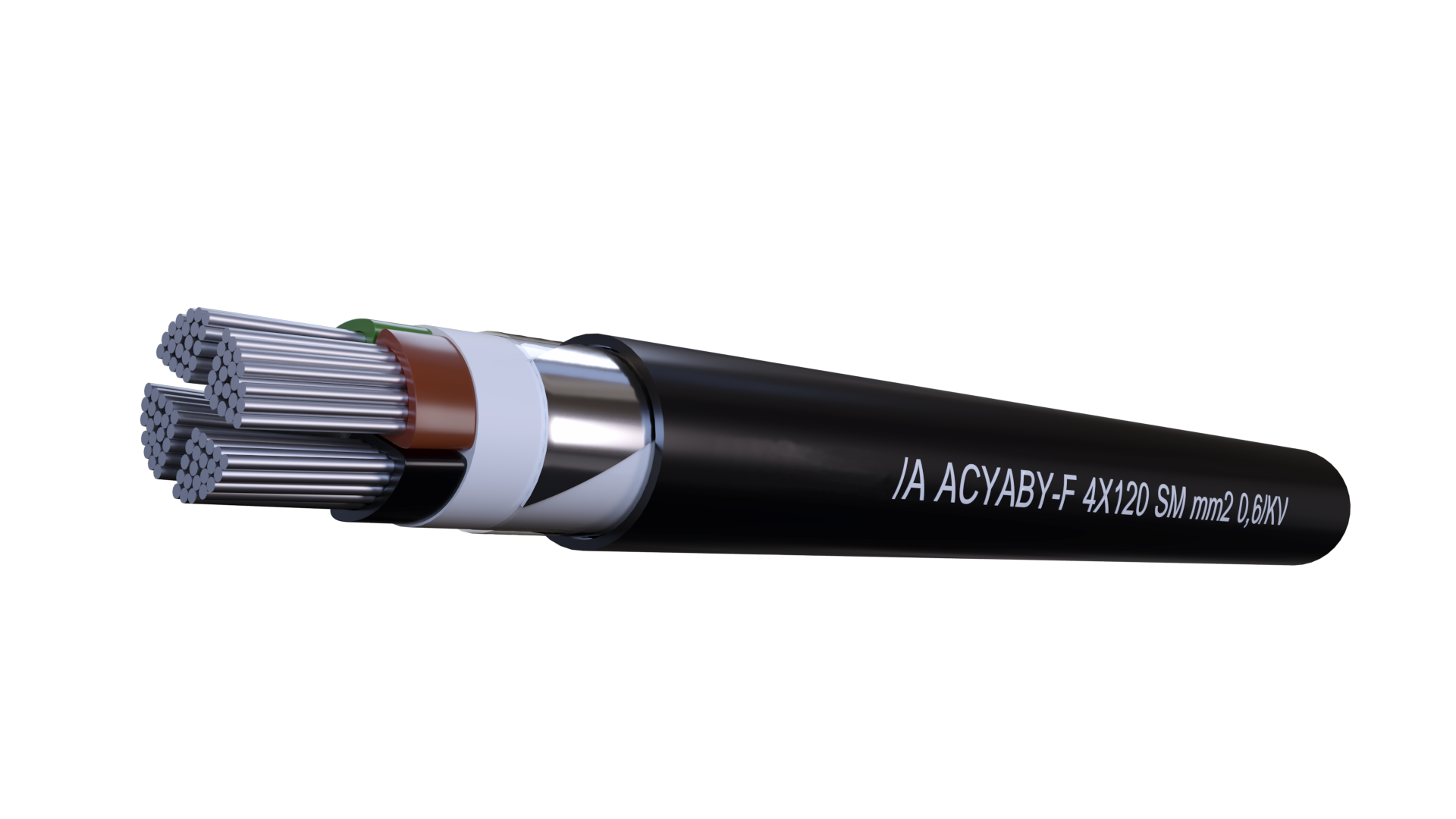

ACYAbY-F 0,6/1kV - PVC insulated and sheathed power cable, steel tape armored
Description
Application:
Power supply to power stations. The cables must be protected against: corrosive chemicals, chemical solvents UV resistant cables.
Construction:
Conductor - Aluminum : solid (RE) /stranded (RM/SM)
Insulation - Polyvinylchloride (PVC)
Filler
Inner sheath
Blank or zinc-plated cold-rolled
Polyvinylchloride (PVC) Black, UV-resistant
Standards:
SP 58 / 2023
Core identification:
According to SR HD 308 S2
Specifications
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Test Voltage: [V]AC 4000
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 6
Multi core x diameter 12
Temperature range:
In motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Max. temp. short circuit °C 160°C
Fire classification CPR class:
EN 50575 - Eca
