CCBYY 0,6/1kV - Electrical cable with copper concentric conductor for single-phase connections
Description
Application:
Intended for the realization of single-phase Uo / U connections: 0.6 / 1 kV.

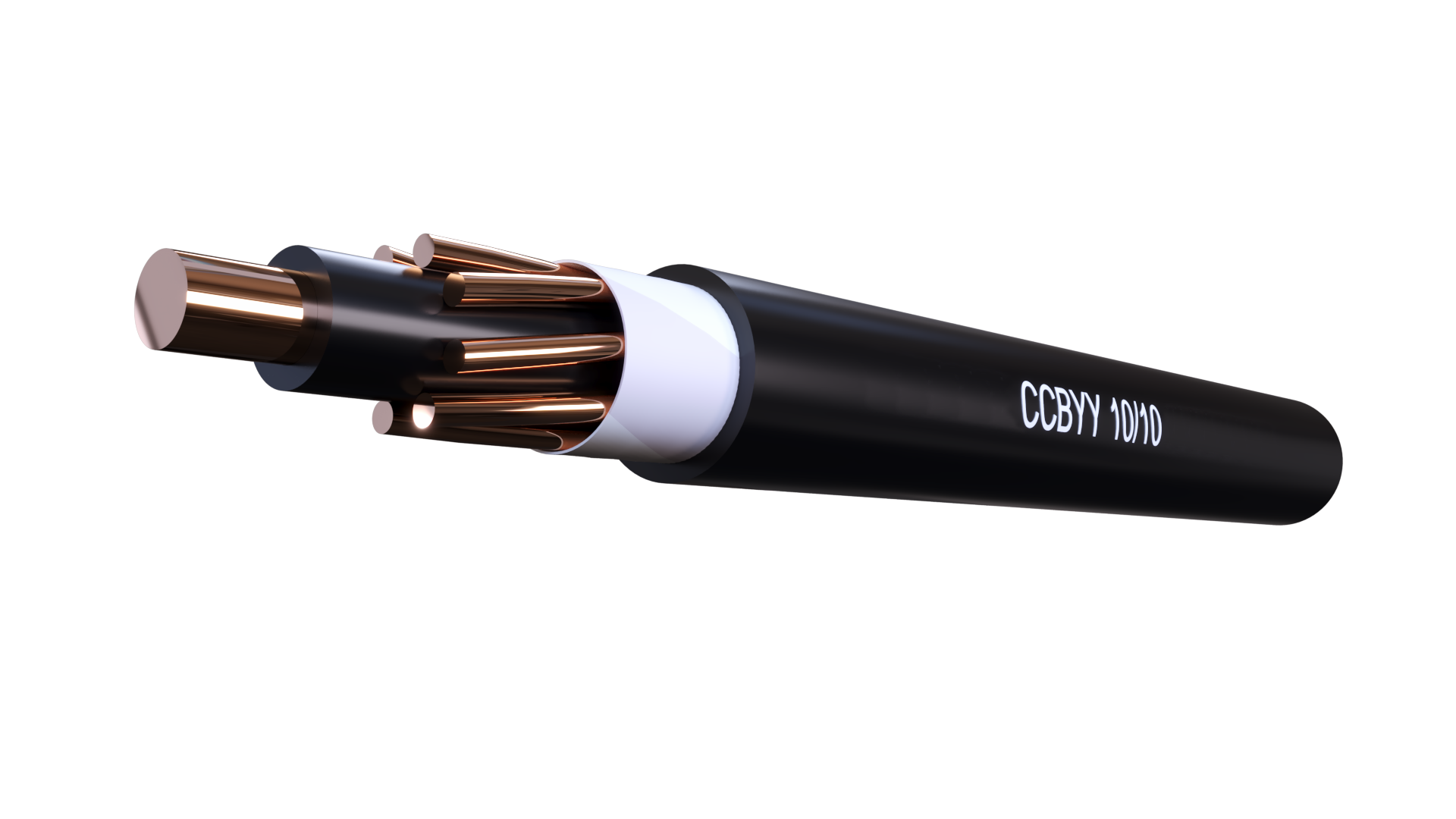

Construction:
Conductor - Copper : solid (RE) / Stranded (RM)
Insulation - Polyvinylchloride (PVC)
Concentric conductor from copper wires
Separator layer
Outer sheath - Polyvinylchloride (PVC)Black, UV-resistant
Standards:
SP 76/ 2013
Specifications
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Test Voltage: [V]AC 4000
Bending radius: Single circle x diameter 8
Temperature range:
In motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Max. temp. short circuit °C 160°C
Fire classification CPR class:
EN 50575 - Eca
