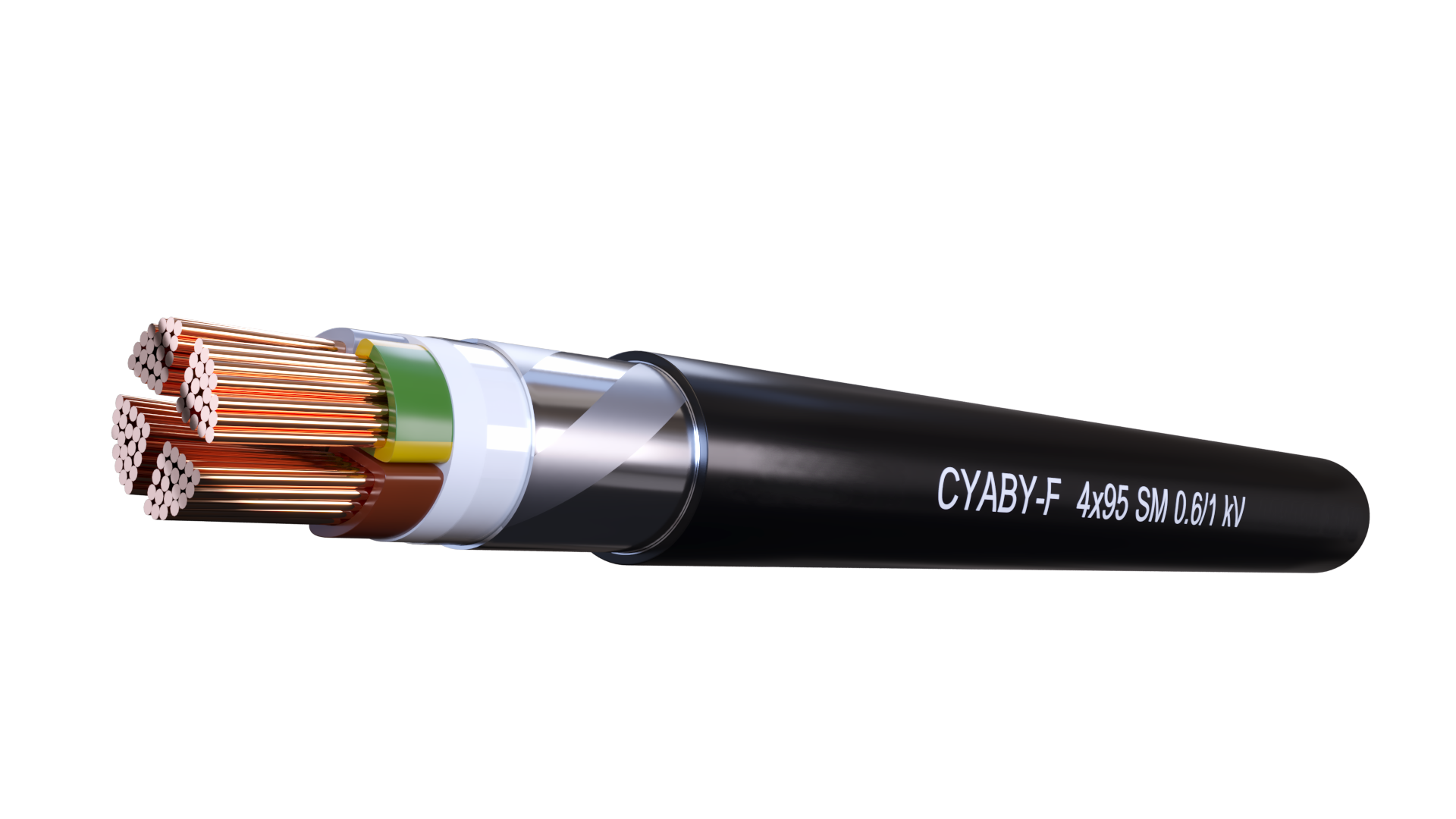

CYAbY-F 0,6/1kV - PVC insulated and sheathed power cable, steel tape armored
Description
Application:
In fixed installations, in dry, wet places, outdoors or in the ground. Its construction allows use in places where there are risks of mechanical damage. This cable has an increased delay in the propagation of the conf flame. IEC 60332-1 and IEC 60332-3-24 Cat.C
Construction:
Conductor - Copper : solid (RE) / Stranded (RM/SM)
Insulation - Polyvinylchloride (PVC)
Filling - PVC or plastic strips
Armor - Cold rolled steel strip
Outer mantle - Polyvinylchloride (PVC) Black, UV-resistant
Standards:
SP 07/2023
Core identification:
According to SR HD 308 S2
Specifications
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Test Voltage: [V]AC 4000
Short circuit time max. [sec] 5
Minimum radius of curvature Min 12 x cable diameter
Temperature range:
-30°C till +70°C
Max. short circuit temp. °C 160°C
Fire classification CPR class:
Eca
