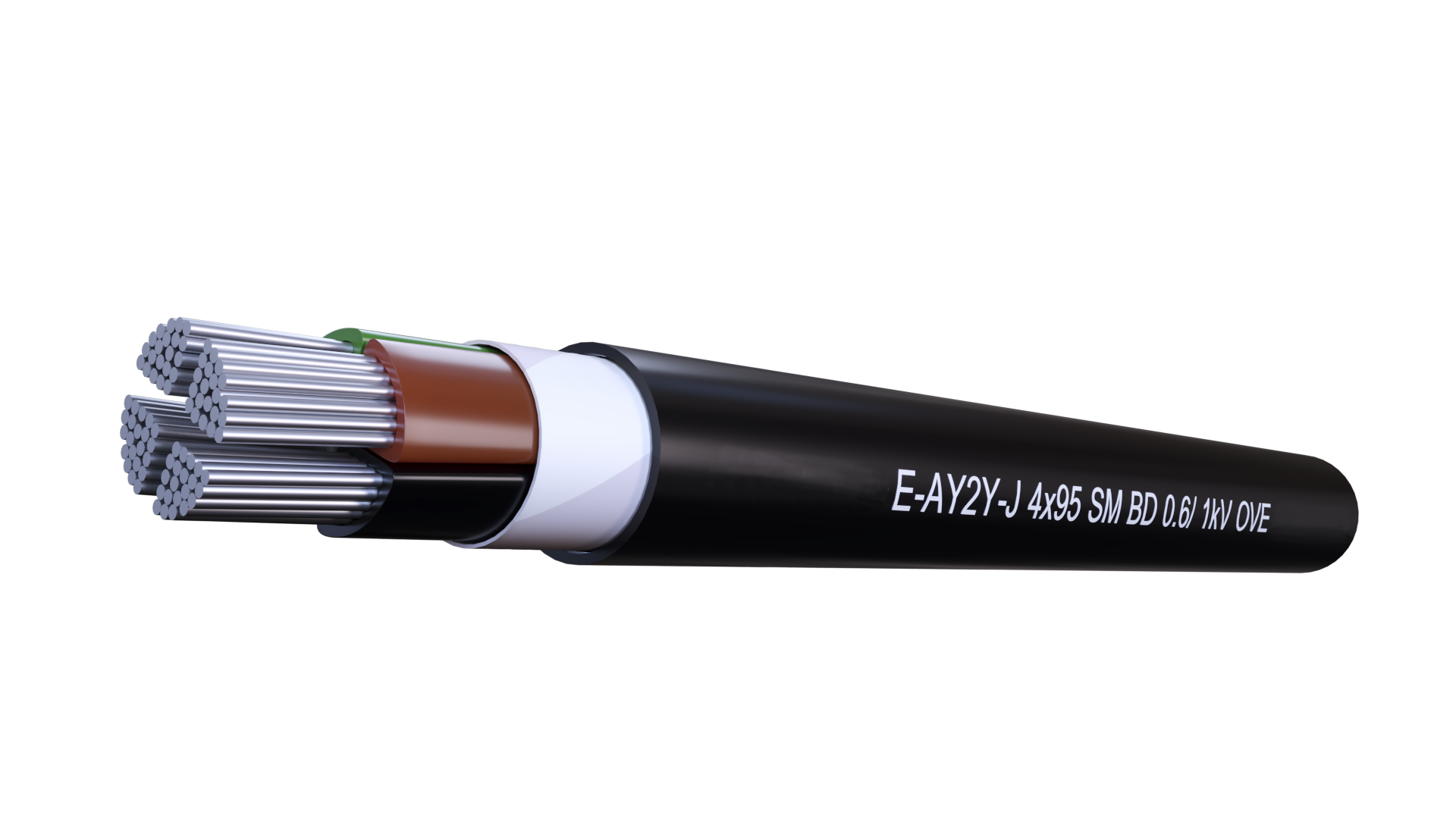

E-AY2Y-J 0,6/1kV - Underground cable cables with PVC insulation
Description
Application:
Power distribution cables in power stations, industrial installations and switchgears, as well as in local mains. For fixed installation undergroud, in interior premises, cable ducts, in open air, in water - as permited by the local building regulations - under severe mechanical stressing during installation and operation.
Construction:
Conductor - Aluminum : solid (RE) / Stranded(RM/SM)
Insulation - Core insulation of polyvinylchloride (PVC)
Filling - PVC core covering (FM) or taping (BD)
Outher sheath - Polyethylene (HDPE), Black, UV resistant
Standards:
ÖVE/ÖNORM E 8200-603: HD 603 S1; IEC 60228
Specifications
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Test Voltage: [V]AC 4000
Short circuit time max. [sec] 5
Bending radius: x diameter 15
Temperature range:
-30°C till +70°C
Max. Short-Circuit Temp.: +250°C
Minimal temperature for laying and manipulation : -5 °C
Fire classification CPR class:
Reaction to fire EN 50575 - Eca
