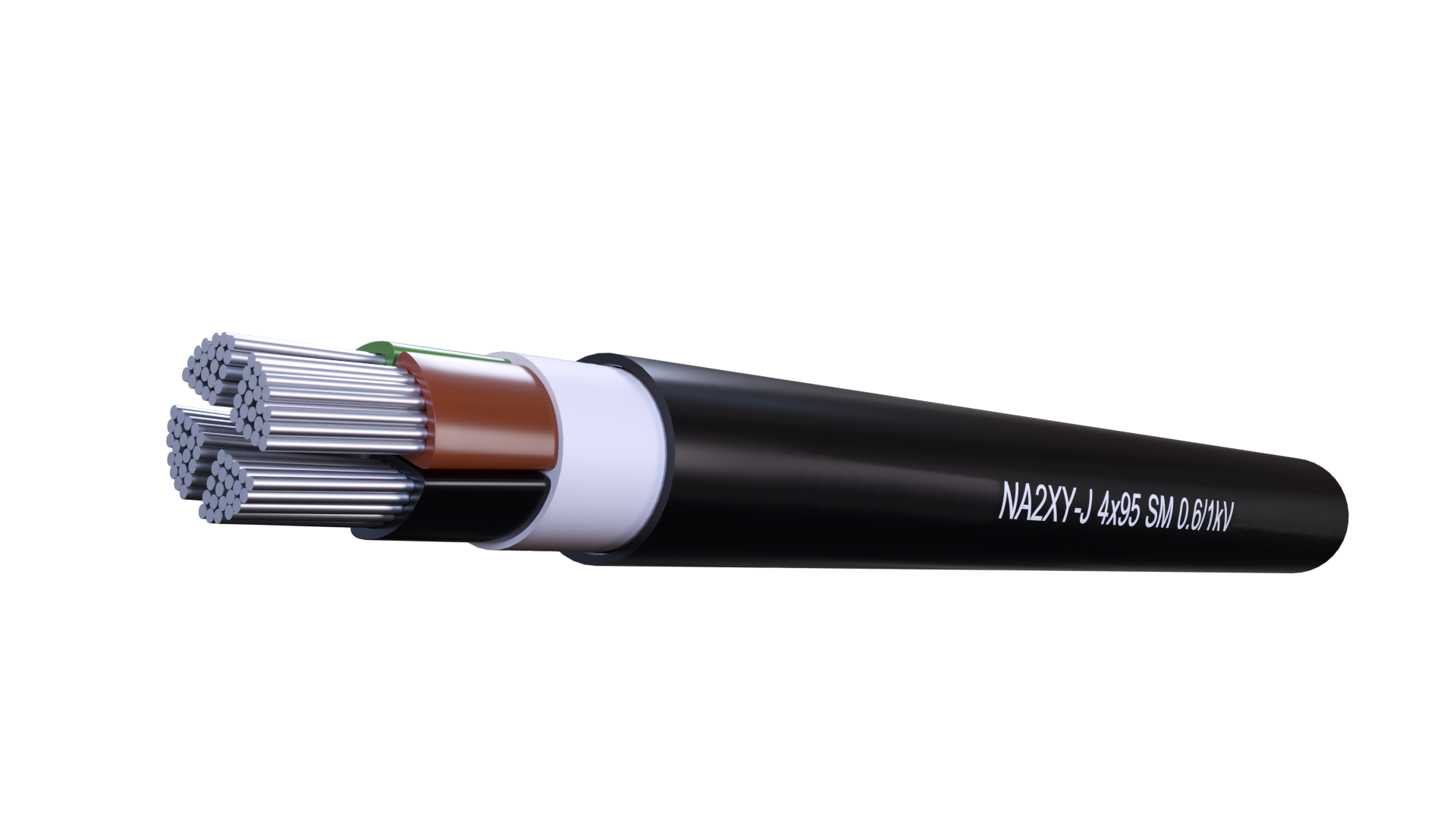

EA2XY 0,6/1kV - Power cable with XLPE insulation and PVC sheath
Description
Application:
For fixed installation in building, in free air, in ground and in water.
Construction:
Conductor - Aluminum : solid (RE/SE) / Stranded (RM/SM)
Insulation - Crosslinked polyethylene (XLPE), type DIX 3
Filling - Extruded inner covering
Outher sheath - PVC, DMV 6 type
Standards:
HD 603 S1;
HD 308 S2;
IEC 60228
Core identification:
Accordance to HD 308 S2
Specifications
Electrical Performance:
Voltage rating : Uo/U (Um) 0.6/1 (1.2)kV
Test voltage : 4kV
Short circuit time max. [sec] 5
Bending radius: single core x diameter 15
Multi core x diameter 12
Temperature range:
Flexed : -5°C till +70°C
Fixed : -35°C till +90°C
Max. short circuit temp: 250°C
Fire classification CPR class:
EN 50575 - Eca
