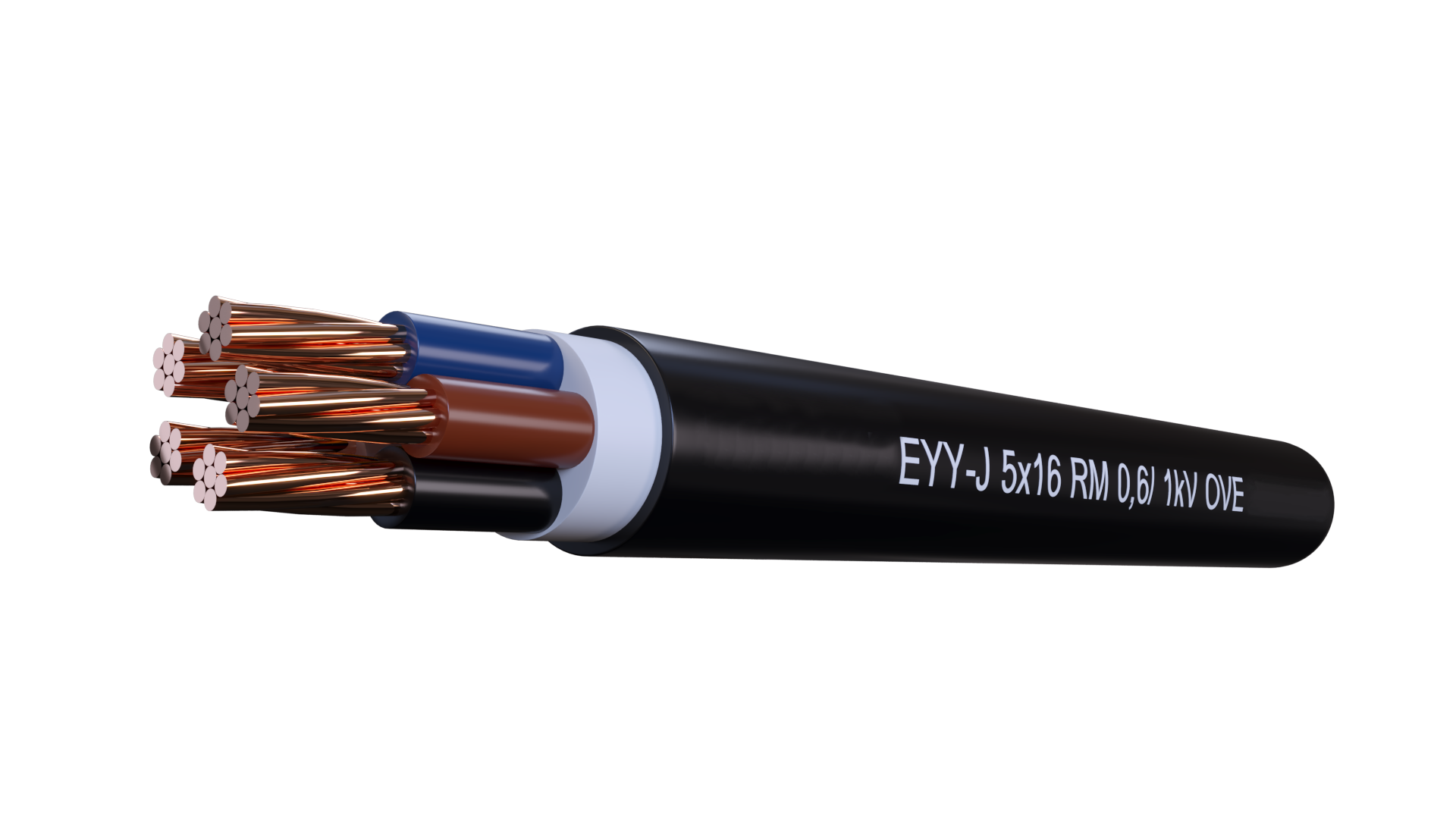

EYY 0,6/1kV - PVC Insulated Heavy Current Cable
Description
Application:
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.
Construction:
Conductor - Copper : solid (RE) or stranded (RM/SM) bare copper
Insulation - Core insulation of polyvinylchloride (PVC)
Filling - PVC core covering or taping
Outher sheath - Polyvinylchloride (PVC), Black, UV-resistant
Standards:
ÖVE/ÖNORM E 8200-603: HD 603 S1; IEC 60228
Core identification:
Accordance to HD 308 S2
JZ: One core green/yellow, other cores are black with figures
OZ: every core is black with figures
Specifications
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Test Voltage: [V]AC 4000
Short circuit time max. [sec] 5
Bending radius: single core x diameter 15
Multi core x diameter 12
Temperature range:
in motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Operating temp. short circuit:160°C <=300mm2; 140°C > 300mm2
Fire classification CPR class:
Reaction to fire EN 50575 - Eca
