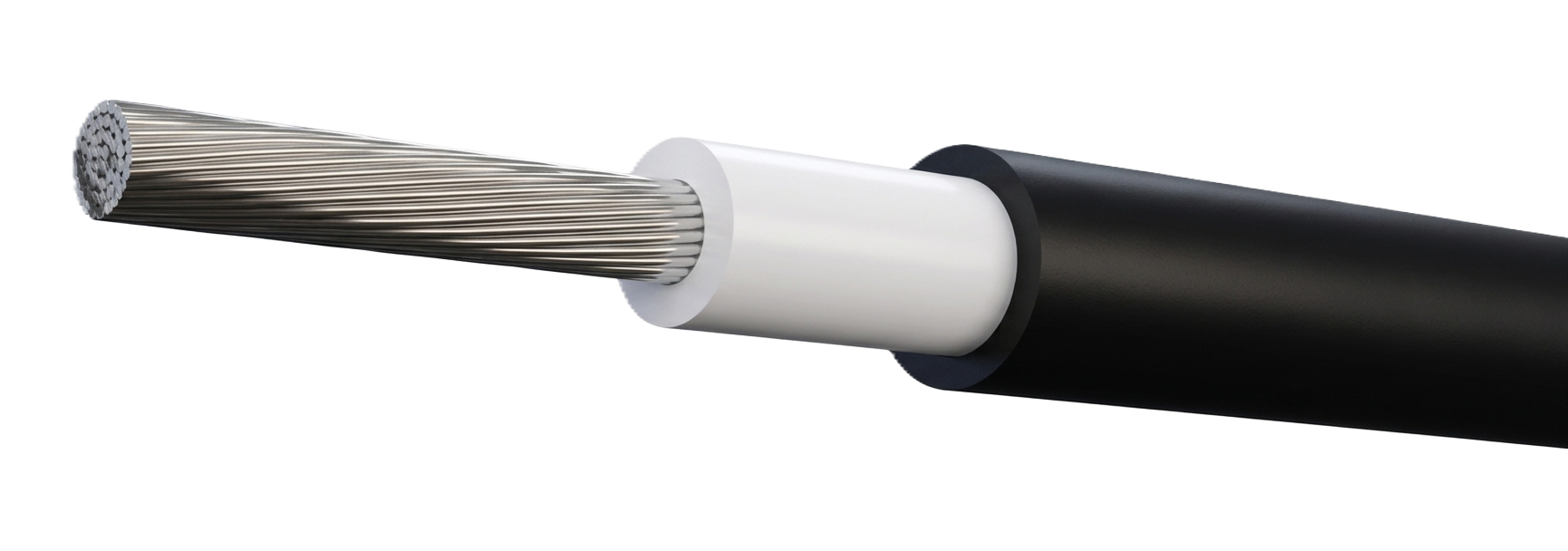

H1Z2Z2-K 1.5/1.5kV DC Electric cable for photovoltaic systems
Description
Application:
Cables used in photovoltaic systems for permanent outdoor use. This versatile single conductor cable is designed to meet the varying needs of the solar industry. Suitable for wet, damp and humid locations
Construction:
Conductor - Tinned copper class 5
Insulation: Halogen-free, cross-linked Polyethylene
Outer sheath: Halogen-free, cross-linked Polyethylene
Standards:
EN - 50618; IEC 60228
License:
This cable is EZU certified
Specifications
Electrical Performance:
Rated Voltage: DC 1.5 / 1.5 kVAC 1.0 / 1.0 kV
Max. perm. operating voltage DC: 1.8 / 1.8 kV
Max. perm. operating voltage AC: 1.2 / 1.2 kV
Nominal voltage: Uo/U 600/1000 Volt
Test voltage: 6500 V
Short circuit time max [sec] 5
Bending radius x diameter 6
Temperature range:
fixed -40°C till +90°C
Fire classification CPR class:
EN 50575Dca-s2, d1, a1
Resistance to water:
AD8 acc. to DIN EN 50525-2-21 appendix E
