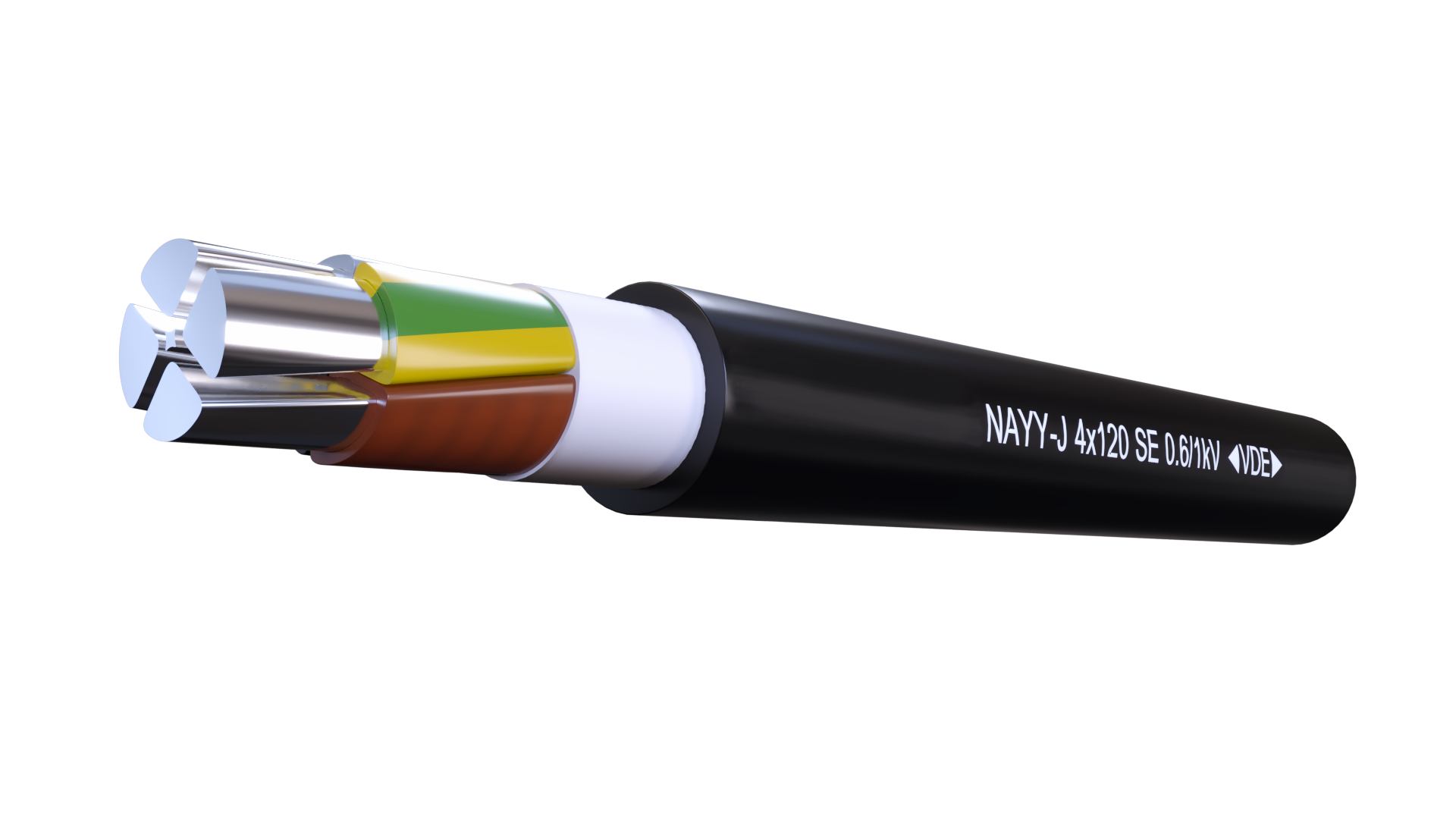

NAYY-J 0,6/1kV - PVC Insulated Cable with Aluminum Conductor
Description
Application:
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.
Construction:
Conductor - solid (SE) or stranded (RM/SM) aluminum wires
Insulation - core insulation of polyvinylchloride (PVC)
Filling - PVC core covering or taping
Outher sheath - outer sheath of polyvinylchloride(PVC), black
Standards:
HD 603 S1; HD 308 S2; IEC 60228
License:
This cable is VDE certified
Specifications
Electrical Performance:
Nominal Voltage: 600 / 1000 Volt
Test Voltage: [V]AC 4000
Short circuit time max. [sec] 5
Bending radius: Single core x diameter 15
Multi core x diameter 12
Temperature range:
In motion: -5°C till +70°C
Fixed: -30°C till +70°C
Operating temp. short circuit 160°C <=300mm2 ; 140°C > 300mm2
Fire classification CPR class:
EN 50575 - Eca
