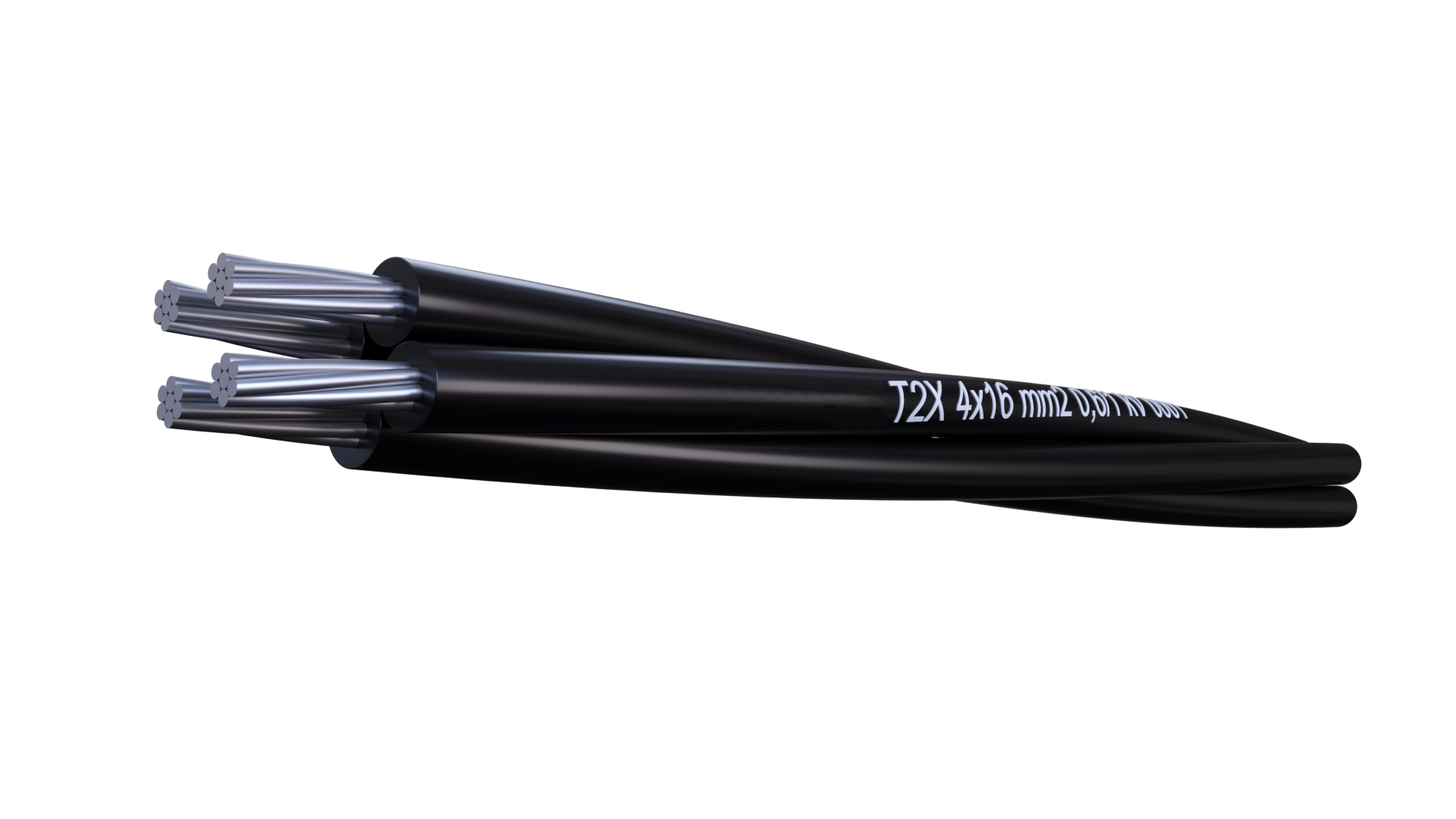

T2X 0.6/1kV - Stranded crosslinked polyethylene - insulated aluminum coductors with or without aluminum alloy carrier
Description
Application:
Power distributions networks with rated voltages up to Uo/U 0,6/1 kV
Construction:
Conductor -Aluminum: solid (RE) / Stranded (RM)
Insulation - Cross-linked polyethylene
Standards:
SP 66/2023
Specifications
Electrical Performance:
Nominal Voltage: 600 / 1000 Volt
Test voltage [V]AC 3500
Short circuit time max. sec 5
Bending radius in motion x diameter 18
Temperature range:
-30°C till +70°C
Max. Short-Circuit Temp.: +250°C
Fire classification CPR class:
EN 50575 - Eca
