YKY 0,6/1kV - PVC Insulated Heavy Current Cable
Description
Application:
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.

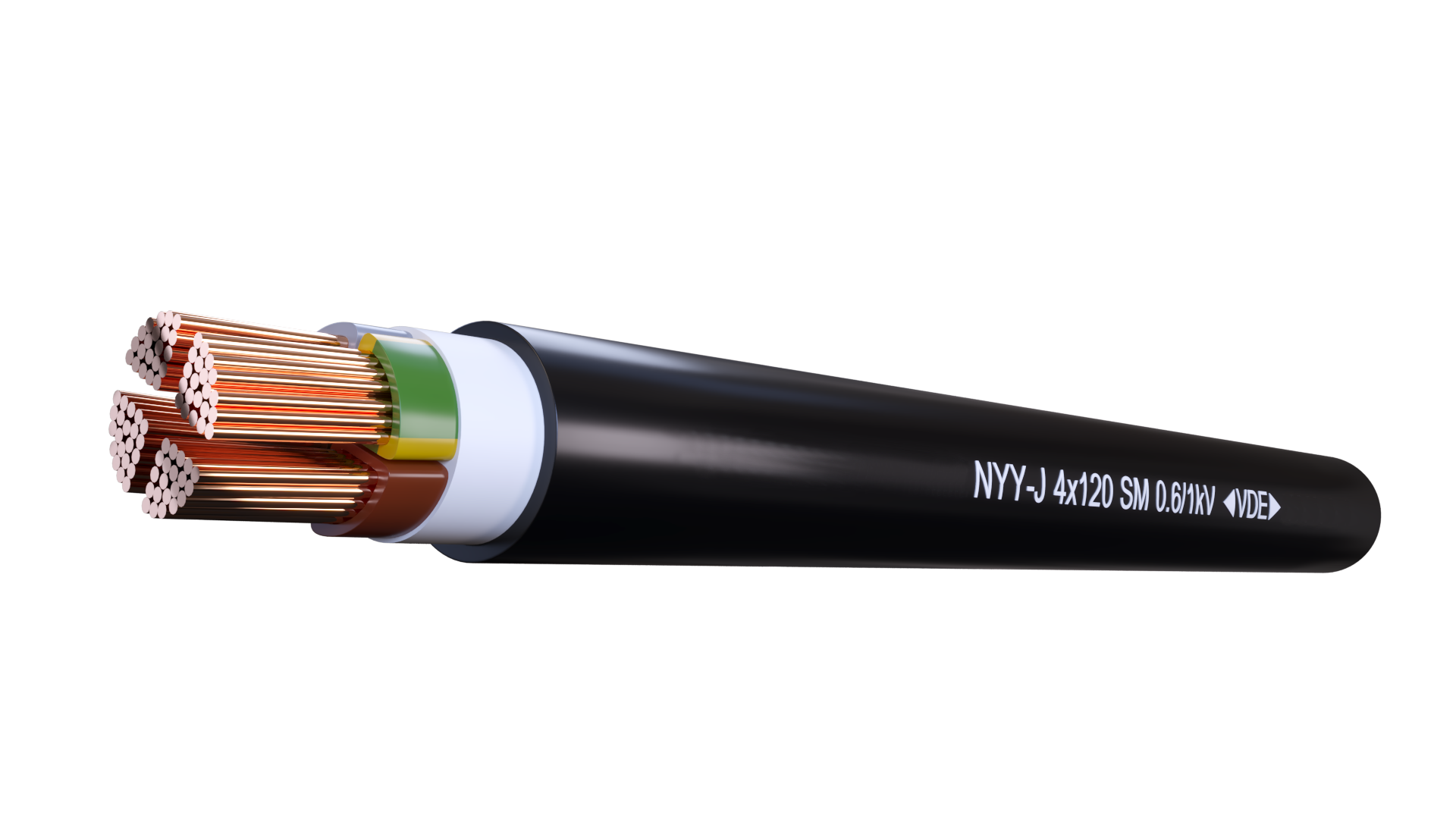

Construction:
Conductor - Copper : solid (RE) or stranded (RM/SM)
Insulation - Core insulation of polyvinylchloride (PVC)
Filling - Core covering or taping
Outher sheath - Polyvinylchloride (PVC), Black UV-resistant
Standards:
IEC 60502
IEC 60228
Core Identification:
Accordance to HD 308 S2
OZ: every core is black with figures
JZ: One core green/yellow, other cores are black with figures
Specifications
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Test Voltage: [V]AC 4000
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 12
Multi core x diameter 15
Temperature range:
In motion: -5°C till +70°C
Fixed: -30°C till +70°C
Max. temp. short circuit: 160°C <=300mm2 140°C > 300mm2
Fire classification CPR class:
EN 50575 - Eca
